Hollow shaft extruder

o_lampe

Speed test : done

I printed a dual color Moai head with 0.25mm layer height and increased speed until it reached 180mm/s (technically, not always real speed)
It wasn't the BLDC extruder that got in trouble. I saw lots of ringing, but upto 150mm/s I saw no signs of under extrusion.
If my math is correct, 0.25mm * 0.4mm *150mm/s = 15 mm^3 volumetric flow?

tombrazier

Great work. I'm keen to see how this works with VDE when I get the time for it.

Are you not using input shaping for the ringing?

o_lampe

@tombrazier Send my some grinded bearings and I can test it
I'd trade it in for a resin-printed carrier...

I'm using input shaping, but it was tuned for 80mm/s. Any other speed and it's off.
I was under the impression, that it doesn't work well on deltas anyway?

tombrazier

@o_lampe Happy to grind and send some bearings. E-mail me at tom at firstsolo dot net.

IS with delta is possible in principle. I understand resonances might vary across the print bed, though. They should not vary with speed. Marlin only has IS on two axes at present (I'd love to have the time to fix this one day!) so deltas are not really supported for IS. I have no idea whether RRF or Klipper have IS for deltas. As I understand it, though, RRF's IS implementation may have issues for any printer. If I have understood correctly then RRF attempts just to do IS on corners which makes a mess with short segments.

dc42

@tombrazier RRF does support input shaping on deltas but not on other nonlinear kinematics.

tombrazier

Thanks @dc42. Am I also right in thinking that RRF's input shaping just targets corners as opposed to summing two or more complete paths made from a time-shifted and scaled original path?

dc42

@tombrazier RRF input shaping adjusts the acceleration profile to cancel or reduce ringing over a range of frequencies.

Summing two complete paths is similar to ZV input shaping. ZV is poor because it has a V-shaped cancellation curve, meaning it cancels well at just one frequency; so RRF doesn't support it, and neither does Klipper.

tombrazier

Success! I've finally completed a 16 minute benchy with my VDE extruder. Somewhat under-extruded in places, but pretty good considering. The rest of the machine hardware is also pretty low spec. 12V bedslinger running on an 8 bit AVR mainboard. Posted a video on youtube.

That's been a long-running project. Glad to put it to bed.

Next up: a new VDE idea to try with 3 pairs of flanged bearings. (And @o_lampe then I'll send three of the bearings to you. It was while I was grinding them that it occurred to me that three extra bearings might be an interesting thing to test!)

tombrazier

My latest VDE design is even better than the one I used for the 16 minute benchy. It features two pairs of flanged bearings mounted back to back plus a plain bearing.

I'd like to experiment with three pairs of flanged bearings but need to buy more bearings before I can do that.
Here are some graphs to give an idea of how different designs are affected by compression of the helical thread:

Y is thread pitch / theoretical thread pitch and X is actual linear extrusion speed in mm/s (i.e. taking compression into account).

The baseline is what I was using when this thread started. It has two chisel edged bearings and a plain bearing and is extruding through a traditional 0.5mm nozzle.
The red line has larger bearings with knife edges (i.e. a / shape rather than a |/ shape). Both of these reduce compression effects. These are lower quality bearings and I believe this accounts for the red line performing worse at low speeds.
The yellow line replaces the nozzle with a 0.4mm CHT clone from aliexpress which I have modified to enlarge the three holes so that there is a sharp edge in the middle rather than a flat face. These clone CHT nozzles actually increase back pressure at low flow rates but they do not have the sudden drop off at around 6mm/s.
The green line is the extruder I used for my 16 minute benchy. It replaces the plain bearing with a knife edge bearing so it has three knife edges rather than 2.
The last line is my latest experiment with 2 pairs of back to back knife edged bearings. This is slightly better and is the only extruder where I have been able to extrude at an instructed 12mm/s (and getting 8.54mm/s) without the compression causing the knife edges to start falling into the wrong helical thread path, causing inconsistent extrusion.

mrehorstdmd

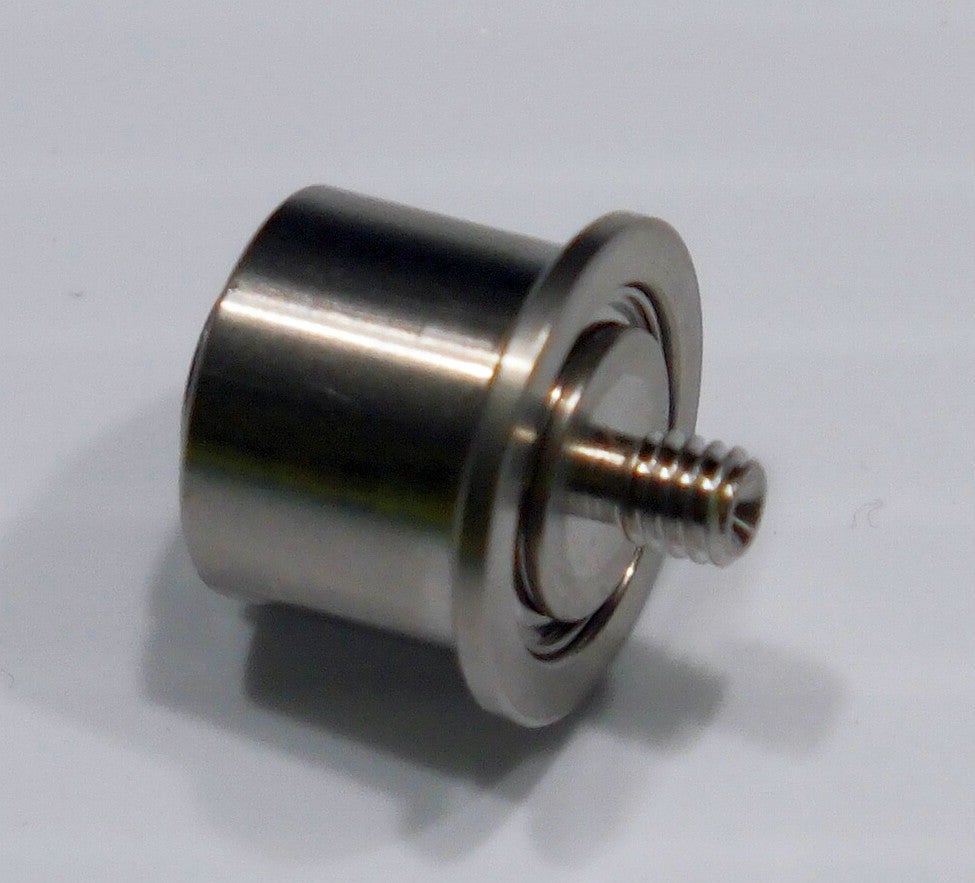

The type of bearings used will wobble a bit on the axles because they have a single set of balls in the race. HDD head armature bearings seem to be built so they can't wobble- either they use needle bearings or they have more than one race and set of balls. They are small, flanged, and often have a threaded stud. They are free if you have a few old HDDs available. They might be ideal for this application:

alt text

o_lampe

@mrehorstdmd I like the thinking behind it, but these bearings are made for silent and smooth run with a balanced load.
I wonder how long they last when you put them under stress with axial and radial load? And how would we get enough of them to satisfy the expected huge demand?

@tombrazier
Maybe it's better to pressfit a collar on a normal bearing? It could sit in the center above the balls and we could grind the edge before it is pressed on.
The fit wouldn't need to be tight. A bit of Loctite would fill the smallest gaps and keep the collar in place.

The collar could be lasercut from a springsteel sheet with a starfish-like cutout in the center. Then we bend the cutout 90° with a tool in a benchpress.
//edit
even better: press 3 of the starfish legs in one direction and the other three in the opposite direction.

tombrazier

@mrehorstdmd The edge needs to have a diameter of < 10mm. If you can source multiple hard drive bearings this small, it would be an idea to try. But it would be something most people can't do.

I am using ABEC-3 rated bearings which have very little play. Rq3 who got me into this uses ABEC-5. However with my back to back arrangement, I now do have two ball races for each bearing pair and the knife edges are at the centre of the bearing pair so the off-centre torques are cancelled out.

@o_lampe I lack the equipment to do the cutting and bending you suggest. But for someone who has it, that makes sense to me. And this seems like a better mass production approach than grinding flanged bearings.

breed

@tombrazier Your double bearing solution is interesting. The two bearings should support each other. Did you have to change the angle? Looks like you might have ground the flanges different.

tombrazier

@breed No, the angle is the same. The bearings are now ground on both edges, rather than just one as I demonstrated in a past youtube video on the VDE-100. Since that time I have acquired a Dremel style tool that allows me to grind both edges.

tombrazier

Hmm, this comment on Marlin feature request #9852 makes me think that my latest version of the VDE-100 extruder is now on a par with other extruders for underextrusion at high flow rates. I had been reading people's graphs as extrusion plotted against actual flow rate. But Mihai's graph for his Ender 3 is plotted against commanded speed. And an added complication is that I was measuring in mm/s rather than cubic flow rate in mm^3/s.

When I rearrange my data my best extruder compares quite well with Mihai's data for his Ender 3 for a 0.4mm nozzle. And this is with a CHT clone nozzle (also 0.4mm) which has higher resistance at low flow rates:

Note the lines on my graph represent progressive changes. So all the changes from the earlier lines are included in each line.

o_lampe

@tombrazier said in Hollow shaft extruder:

I was measuring in mm/s rather than cubic flow rate in mm^3/s.

If both measurements were done with the same nozzle diameter, they are scalable.
It get's tricky when mm/s was the toolhead speed. Then you'd need to know extrusion width and layer height.
With the extrusion rate I can achieve with the BLDC-sherpa, I'm confident of using a volcano hotend with bigger nozzles.
That wasn't possible before, unless I printed much slower.

o_lampe

@tombrazier I guess your Dremel will be pretty busy for a while. Here's the first print of the double roller VDE-100

Some artifacts I've noticed when I converted to .obj. They actually show in the print..

tombrazier

@o_lampe said in Hollow shaft extruder:

It get's tricky when mm/s was the toolhead speed.

Sorry I might not have been clear. It was filament speed. Multiple by 1.75^2 * pi / 4 to get volumetric speed.

tombrazier

@o_lampe said in Hollow shaft extruder:

Here's the first print of the double roller VDE-100

Fab, thanks.

Some artifacts I've noticed when I converted to .obj. They actually show in the print..

The hole is intended. It marks bearing number 1. In this case that's not really relevant. But when there were different kinds of bearings or (because I ran out of bearings to grind!) different diameter bearings in different positions, I needed the marker.

The bits in the middle are fine. If they printed really well and are strong enough, they can act as an extra guide for the filament. Otherwise they can be broken or cut off easily enough.

o_lampe

@tombrazier How do you mount it on the stepper? There is no radial hole for a grub screw.
